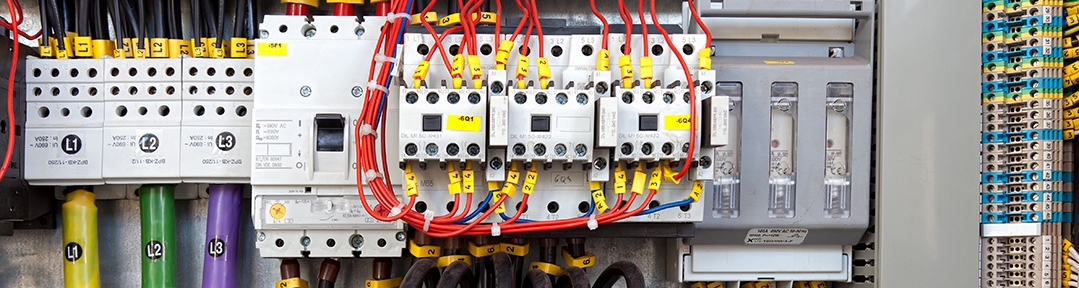

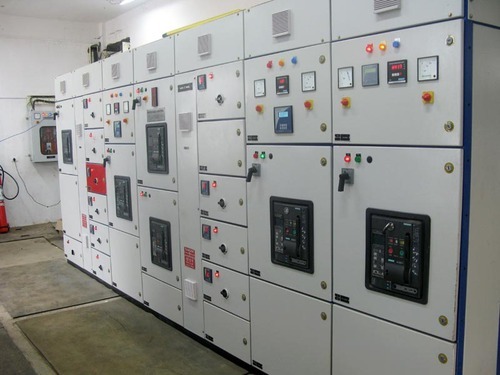

A Power Control Center / distribution board (also known as panel board or breaker panel) is a component of an electricity supply system, which divides an electrical power feed into subsidiary circuits, while providing a protective fuse or circuit breaker for each circuit, in a common enclosure. Normally a main switch (SFU) or air circuit breaker(ACB) or Moulded case circuit breaker (MCCB) and in recent boards, one or more residual-current device (RCD) or residual-current breakers with over current protection (RCBO) and miniature circuit breaker (MCB) are also incorporated. Various types of metering equipment are used to monitor the input and output of feed and subsidiary circuits such as volt meter, ampere meter with phase selector switches, indicators for each phase, fuses for protection, frequency meter, multifunction meters, kwh meters etc.

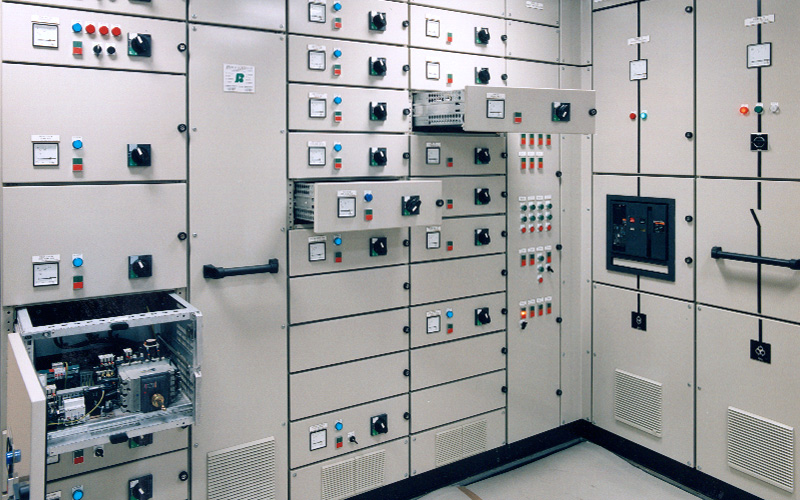

A Motor Control Center (MCC) is an assembly of one or more enclosed sections having a common power bus and principally containing motor control units. Motor control centers are in modern practice a factory assembly of several motor starters.Our company designs and fabricates them using the latest CAD technology under the expert scrutiny of experienced engineers. We offer them in varied specifications and specialize in configuring them as per requirements.

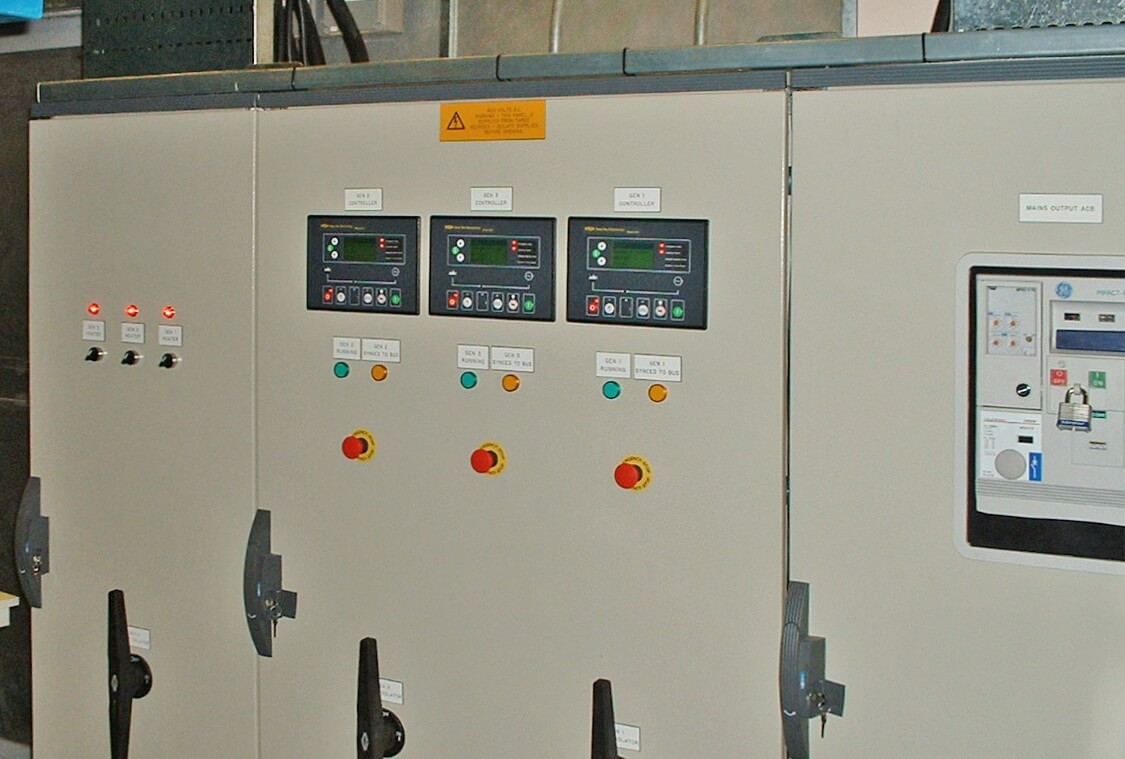

AMF panel is the short form of Auto Main Failure panel. Auto mains failure (AMF) panel is meant for controlling DG START/ STOP sequence in accordance to the availability of main power supply. Manual or operator's intervention will not be needed to start the generator set after the power is failed from main source. We design & manufacture the AMF panels for various capacity & different make of Diesel Generator set. It is normally connected to the generator set to the control of the generator set function. It is connected with a feedback from main power source that it sense if the main power fails and triggers a start command (through relay and hard wiring) to the Generator to start and close the necessary circuit breakers to take the load on to Generator. It can perform the same functions vice-versa, when the main supply is restored or is available. It transfers the load to main supply and sends closing command to the DG Set so that the generator stops and is ready to perform the same function again when required. It is also provided with a smart battery charging system for the generator so that the starting of the generator is not hampered for low battery voltage and also provides protection to the battery against excessive charging.

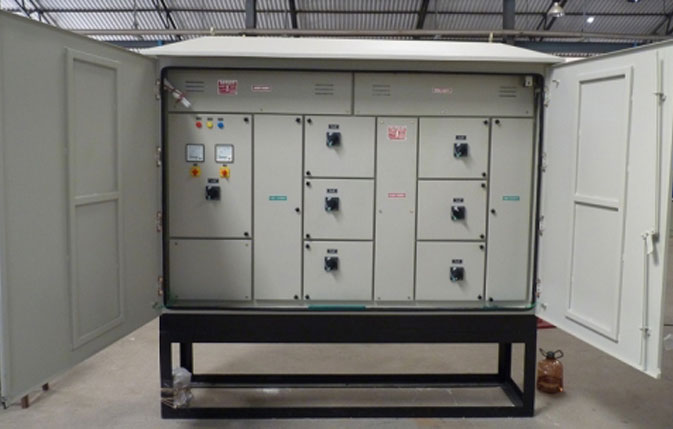

Feeder pillar is an effective electrical enclosure to provide electrical services for low voltage electrical distribution applications. It is designed as compact and robust for outdoor use with appropriate class of protection form dust and water/rain. The protection from solid & liquids is measured by different classes of Ingress Protection (IP). The metal enclosure is made of sheet steel of required thickness Enclosure is suitable for outdoor application. Feeder pillar boards/ outdoor DB's are used for distribution of power, power control system and lighting control system etc., at places where indoor sub-stations are not available and at far distant.

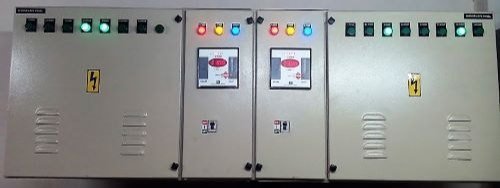

An Automatic Power Factor Correction panel is used to Save Energy by consistently maintaining higher power factor. Low Power Factor leads to poor power efficiency, thereby increasing the apparent power drawn from the distribution network. This result in overloading of Transformer, Bus bars, Switch gears, Cables and other distribution devices within the Industry or consumer area.

We are a highly reliable Distribution Control Panel Boards Manufacturer and Supplier in Bihar. The Distribution Control Panel Boards are highly durable and are known for their excellent performance.

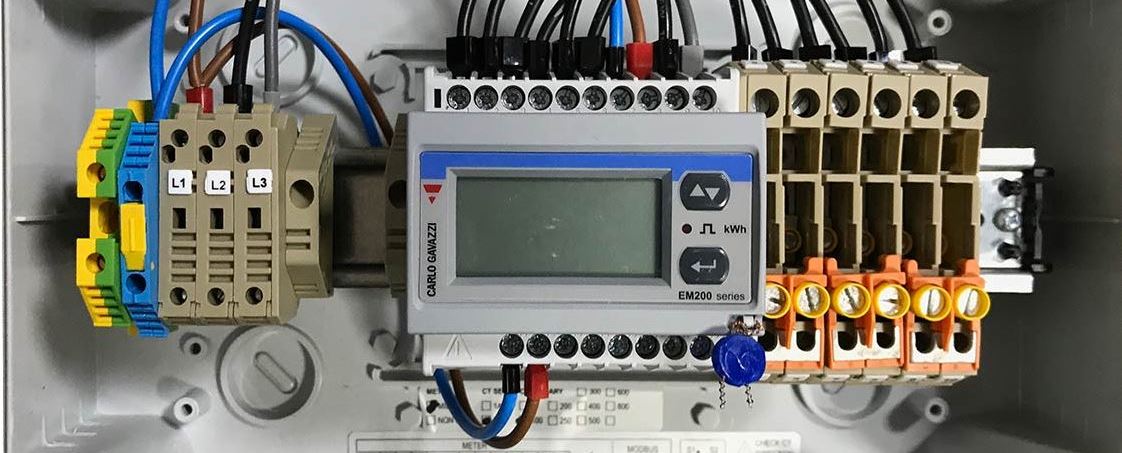

Metering panels are a kind of control panels which are very much required for the domestic as well as industrial purposes for the measurement of amount of power used up and the rate of power consumption. The metering panels are the best equipments which can easily be installed and can conveniently be used for the processes of power consumption. These apartment metering panels are very easy to install and are provided with excellent anemometers and galvanometers for the calculation of present incoming and output voltage amplitude.

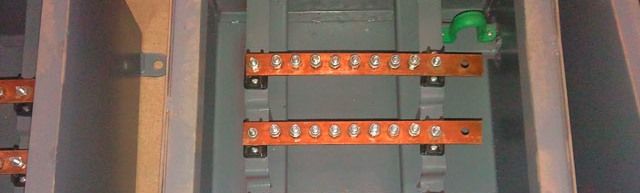

Buy structurally reliable, low maintenance and reliable Junction Boxes from us at market leading prices. Available with us in varied specifications, our Junction Boxes can be customized to meet specific requirements. We guarantee our Junction Boxes are optimally functioning with high mechanical properties. Buyers can get Junction Boxes from us at market leading prices.
